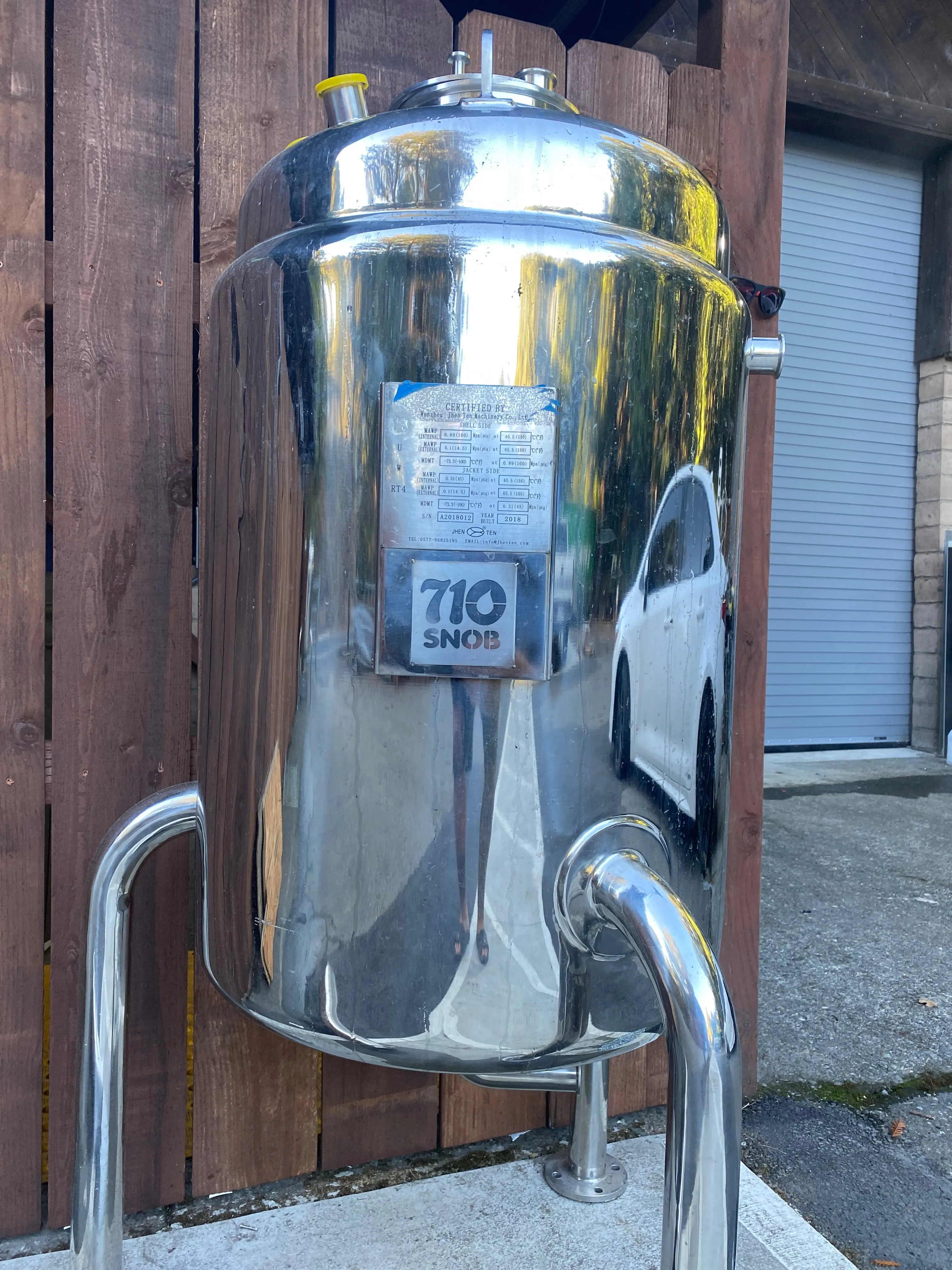

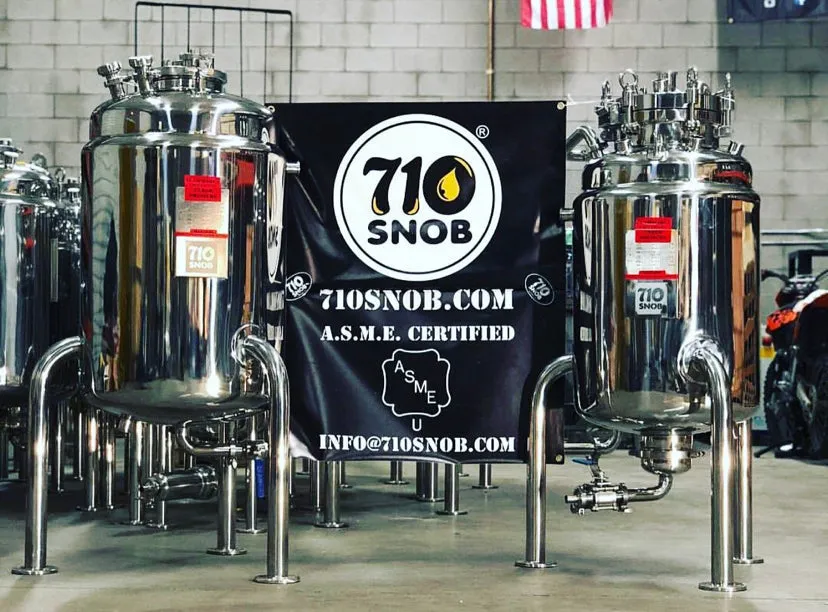

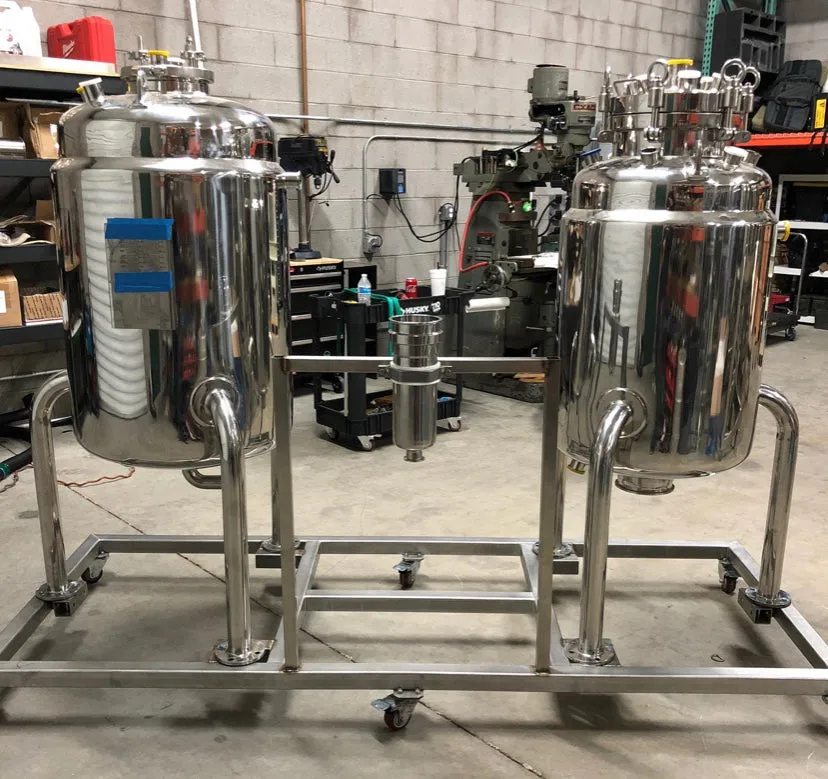

ASME certified 304 stainless steel 150L reactor.

we have 2 styles available,

14” manway top or

8” Tri clamp with internal coil

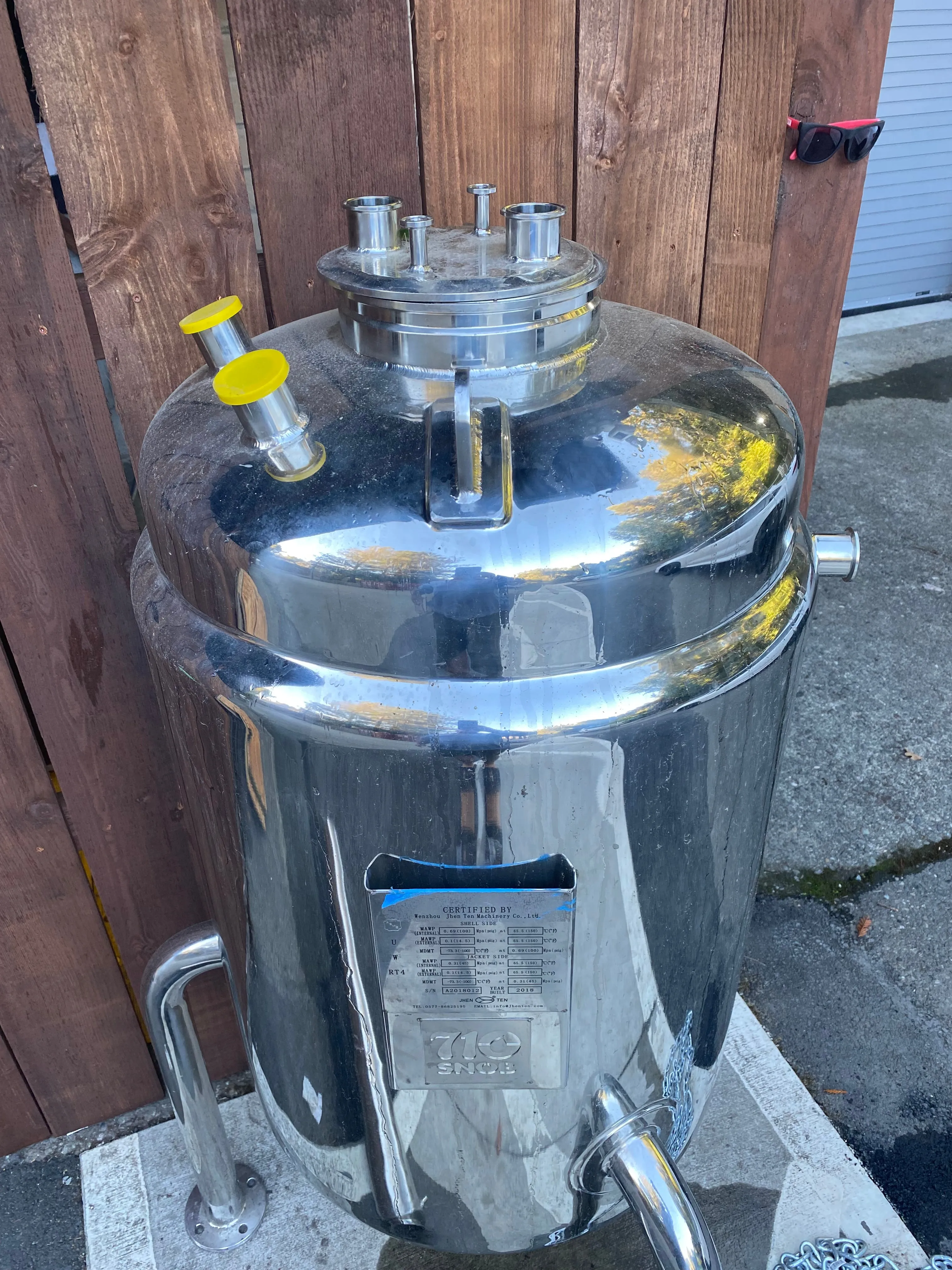

#1 jacketed vessel:

1.5” jacket ports inlet and outlet

1x 1.5” drain

2x 1.5” fill on top

1x 8” tri clamp top, has internal coil with 1.5” inlet and outlet

2x additional fill on the 8” lid

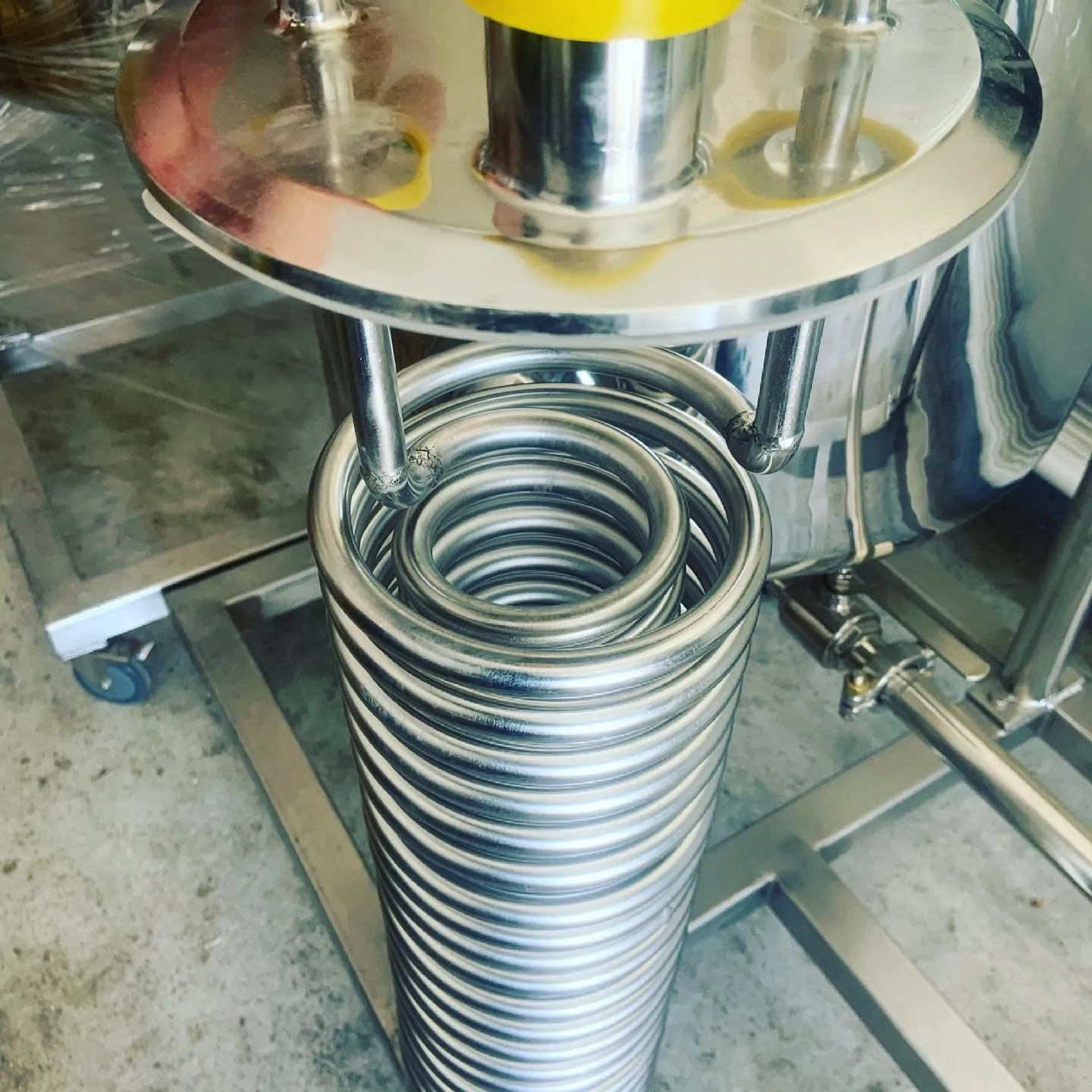

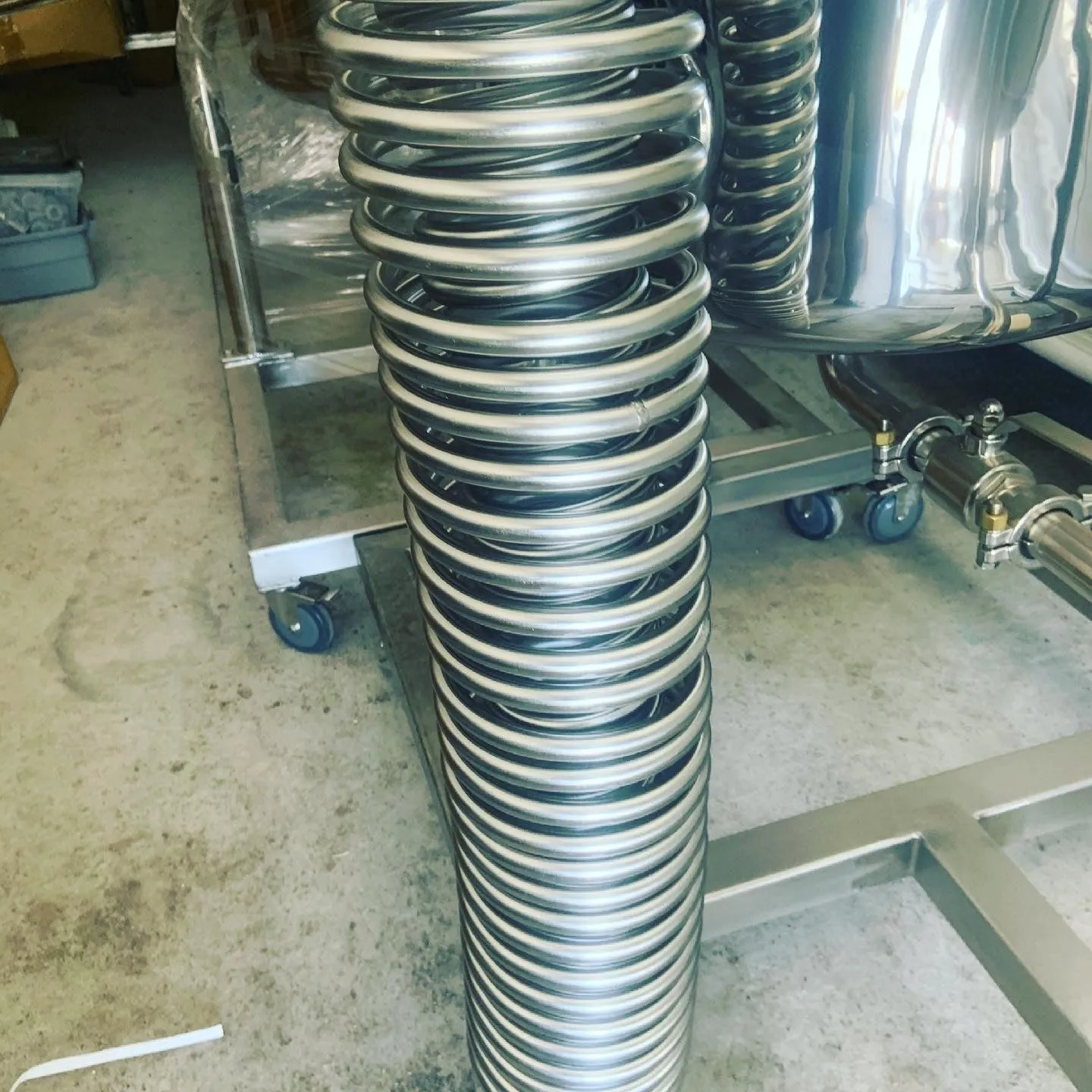

Reinforced 8” TC Center with internal coil,

Coil can be removed and an agitator can be mounted

Dimensions :

Approx. Tank Dimensions: ~36” L x 36” W x 65”H

400lbs

ASME stamped

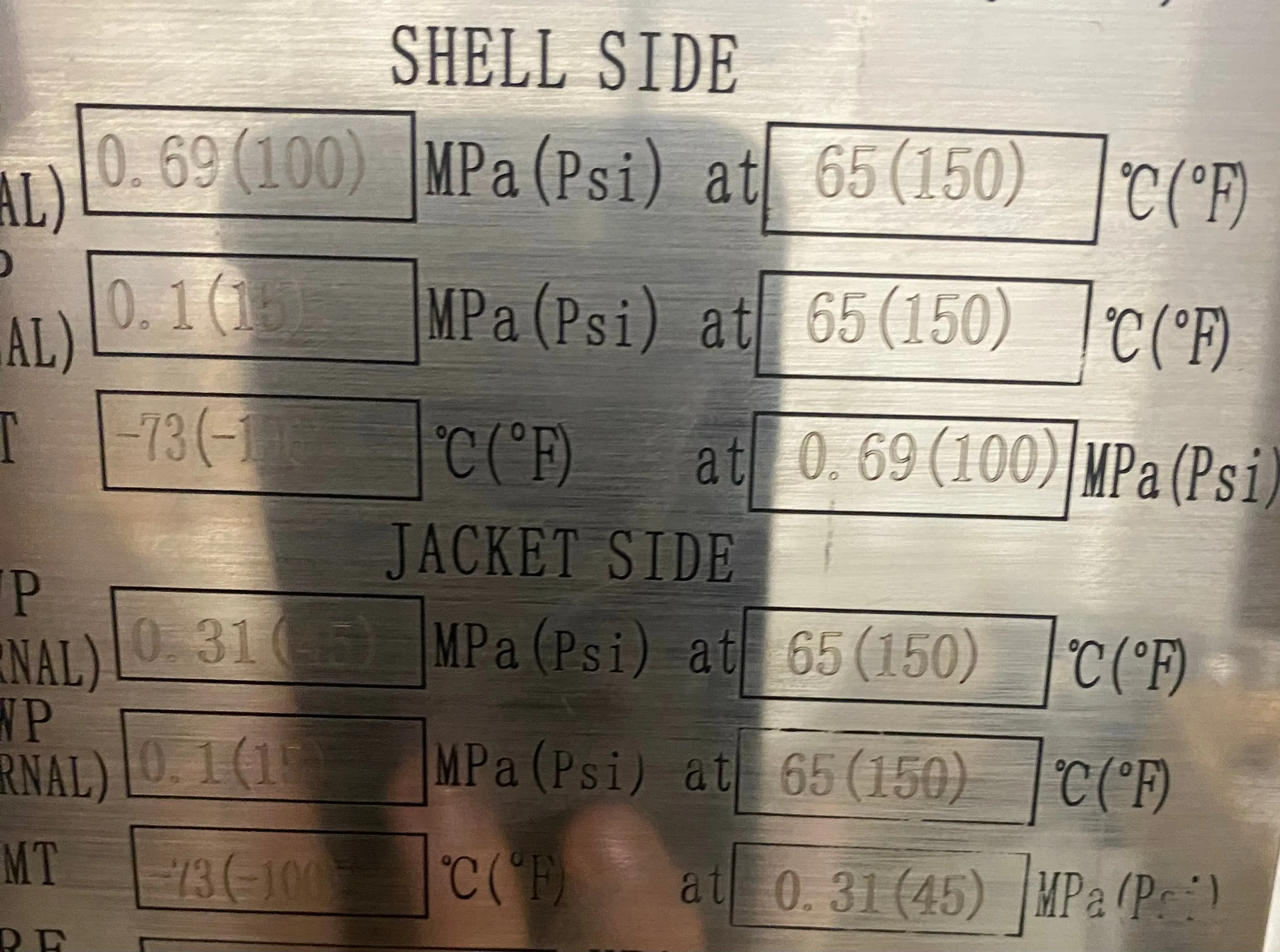

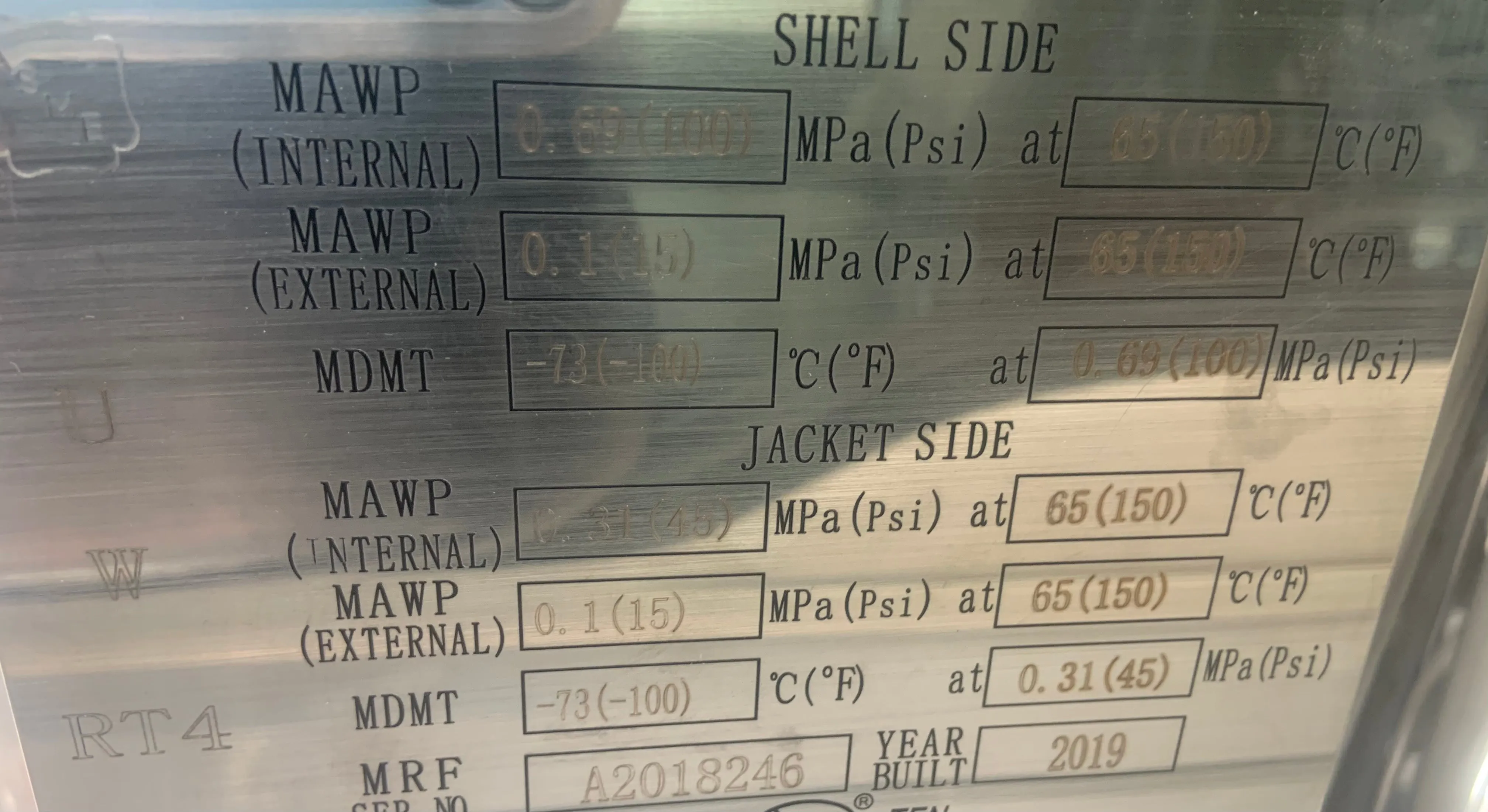

Shell side:

MAWP internal 100psi at 150F

MAWP external 15 psi at 150F

MDMT -100F at 100Psi

Jacket side:

MAWP internal 45 psi at 150F

MAWP external 15 psi at 150F

MDMT -100F at 45psi

304 stainless steel

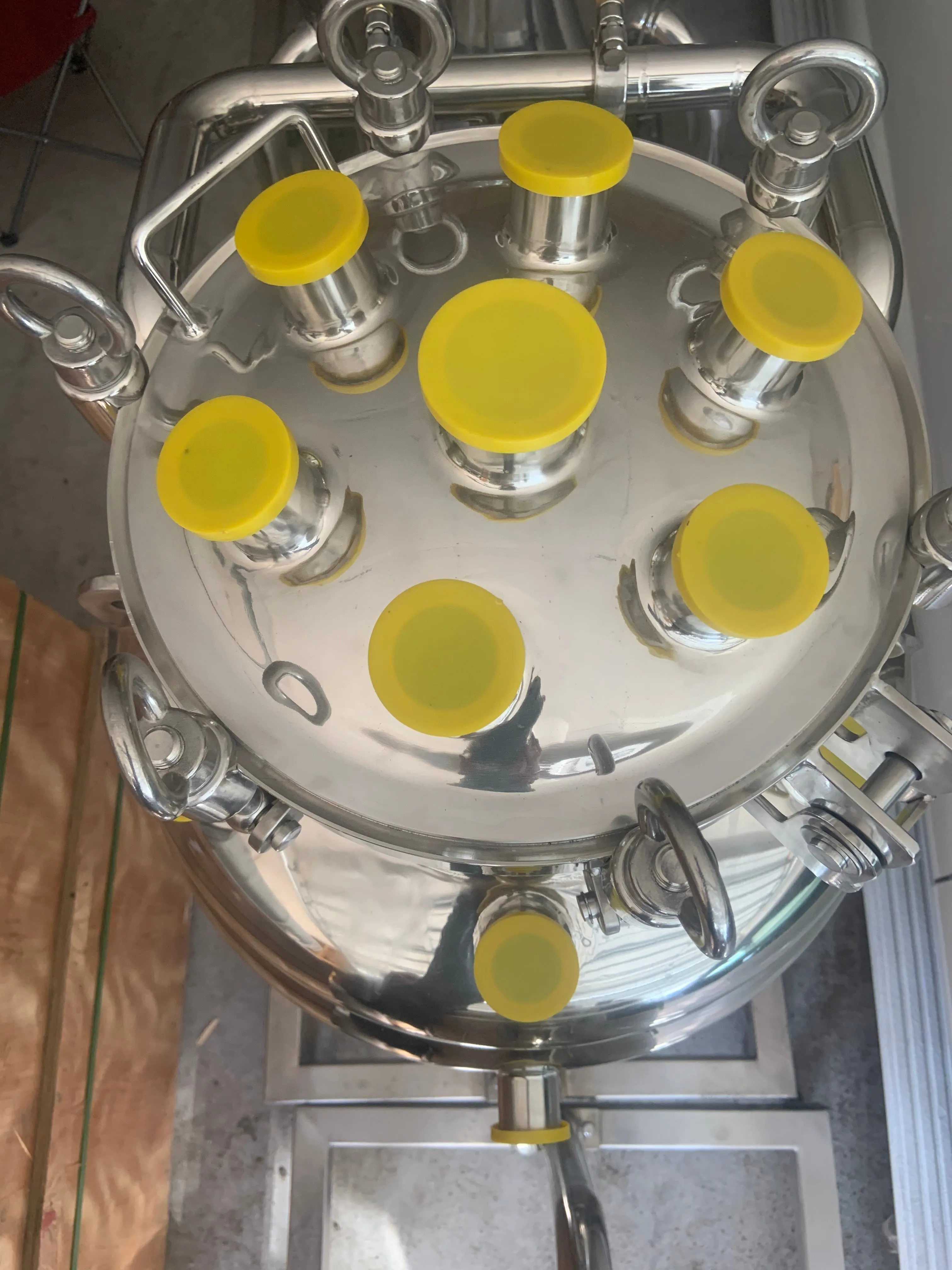

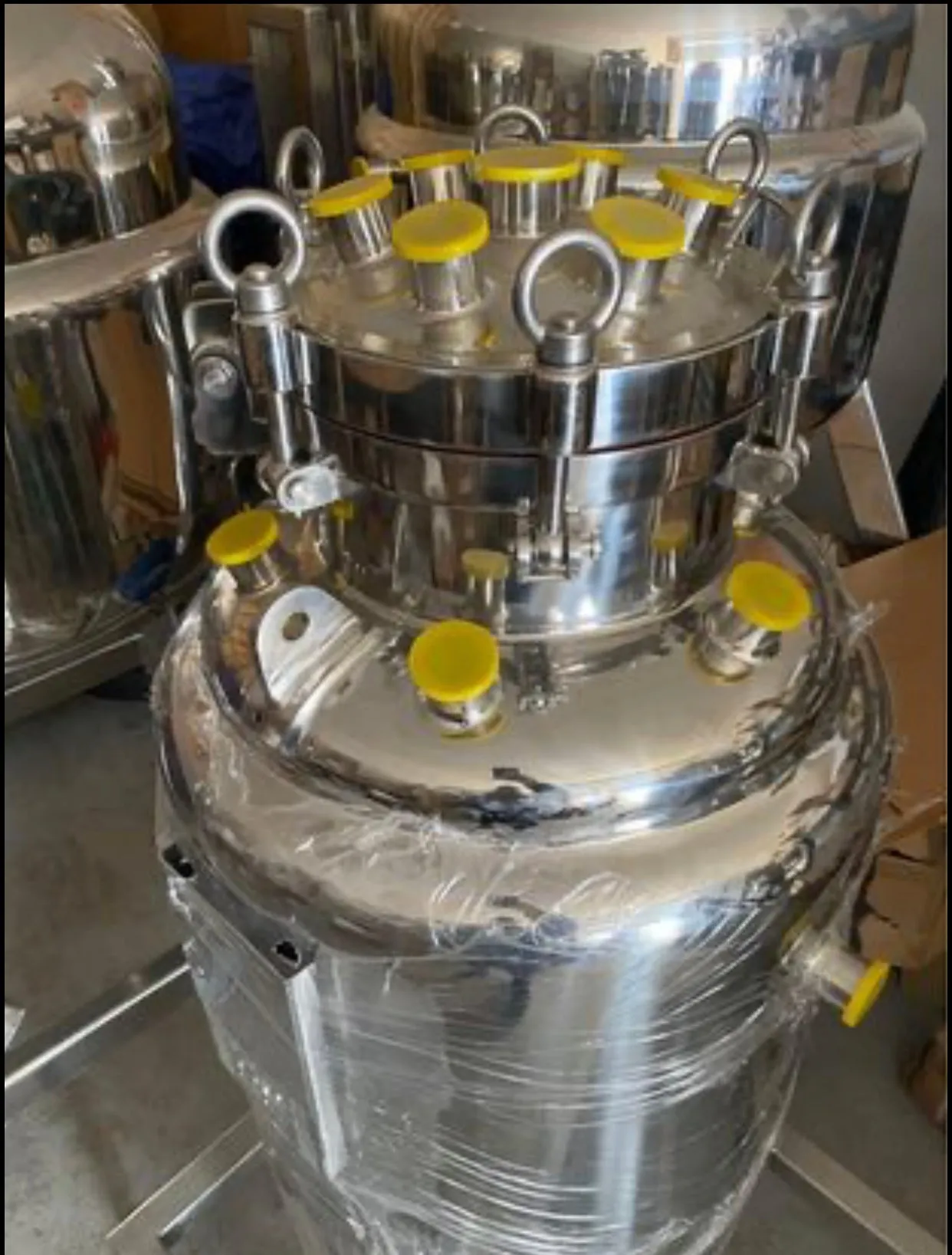

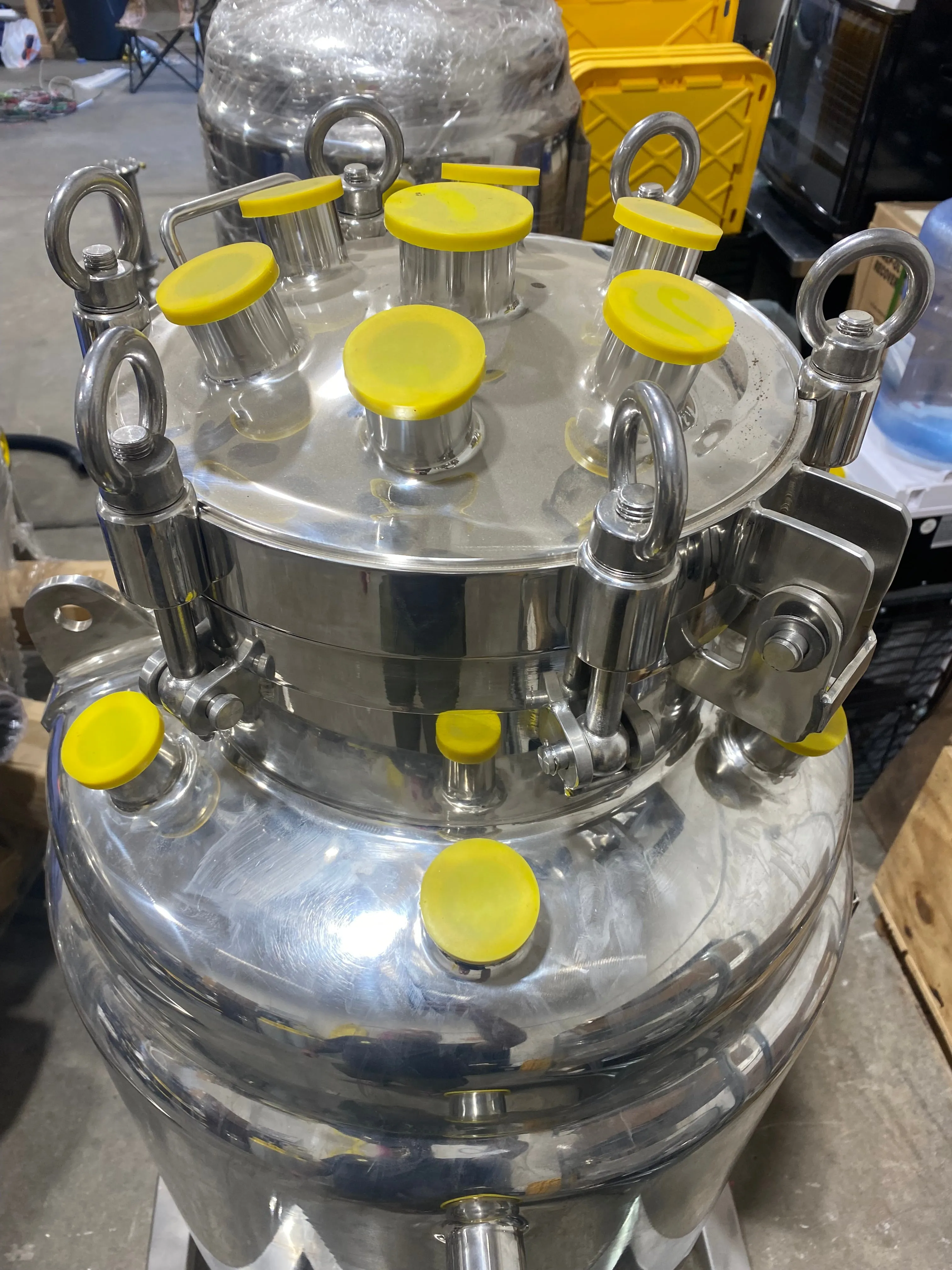

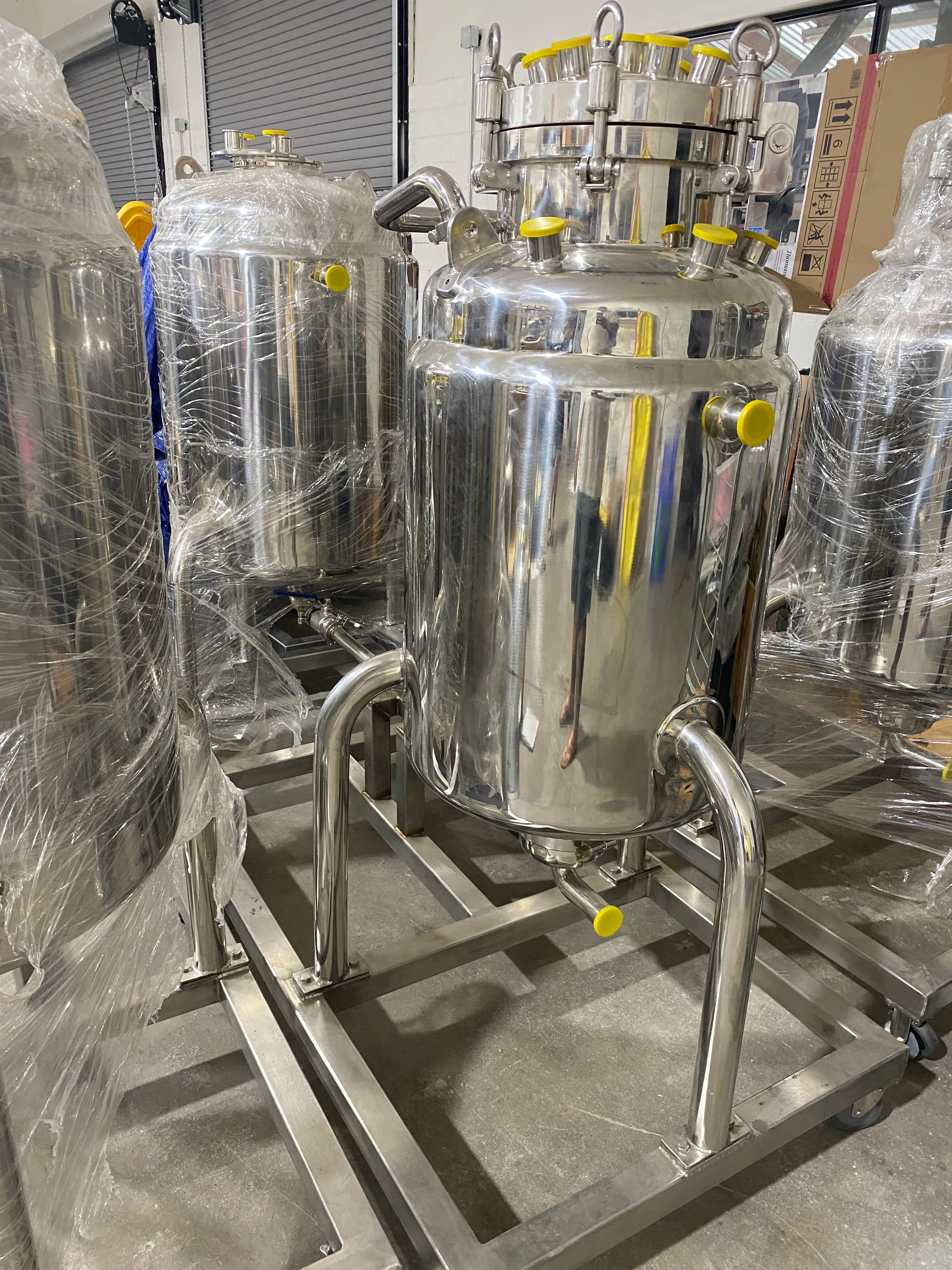

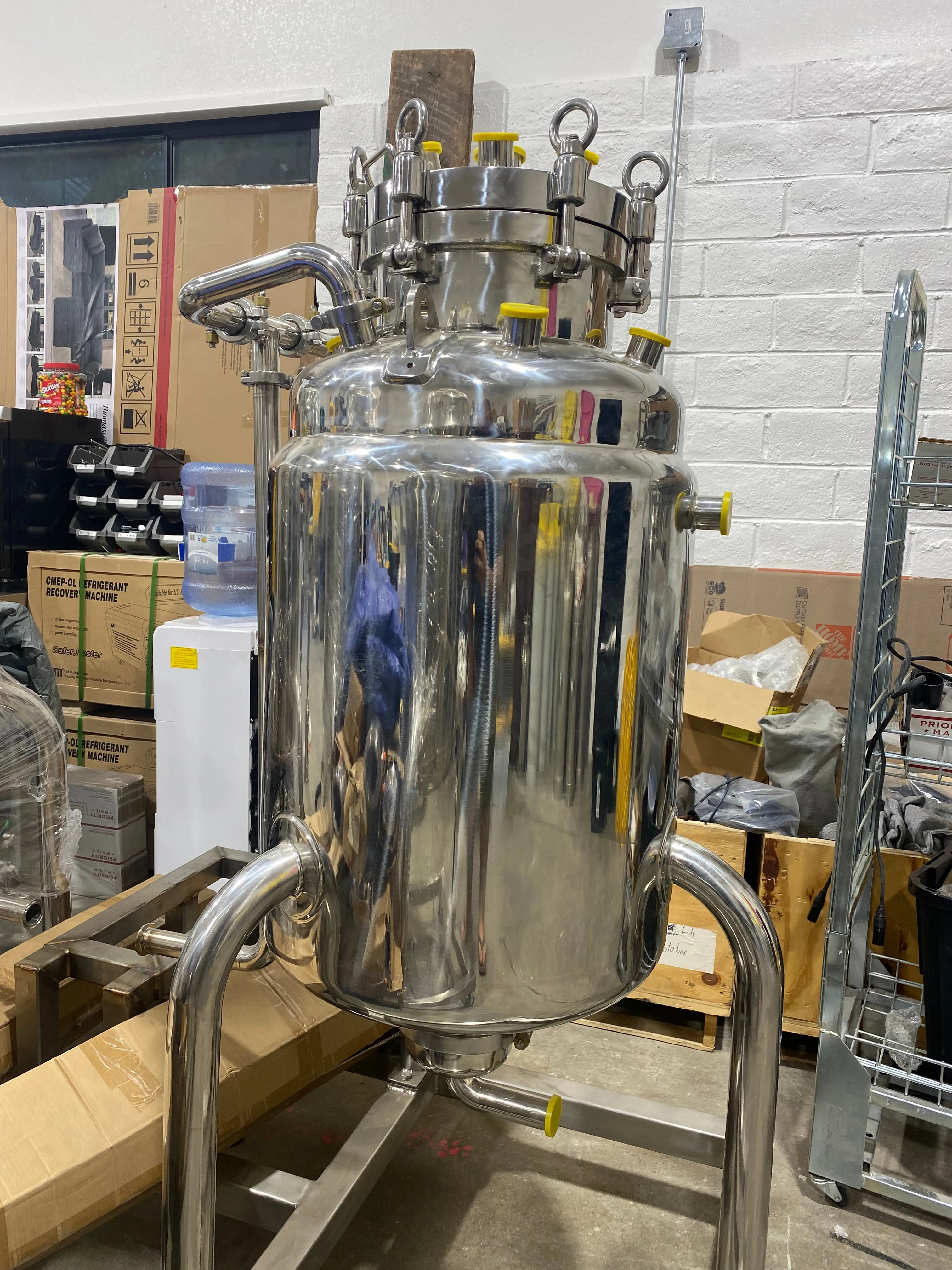

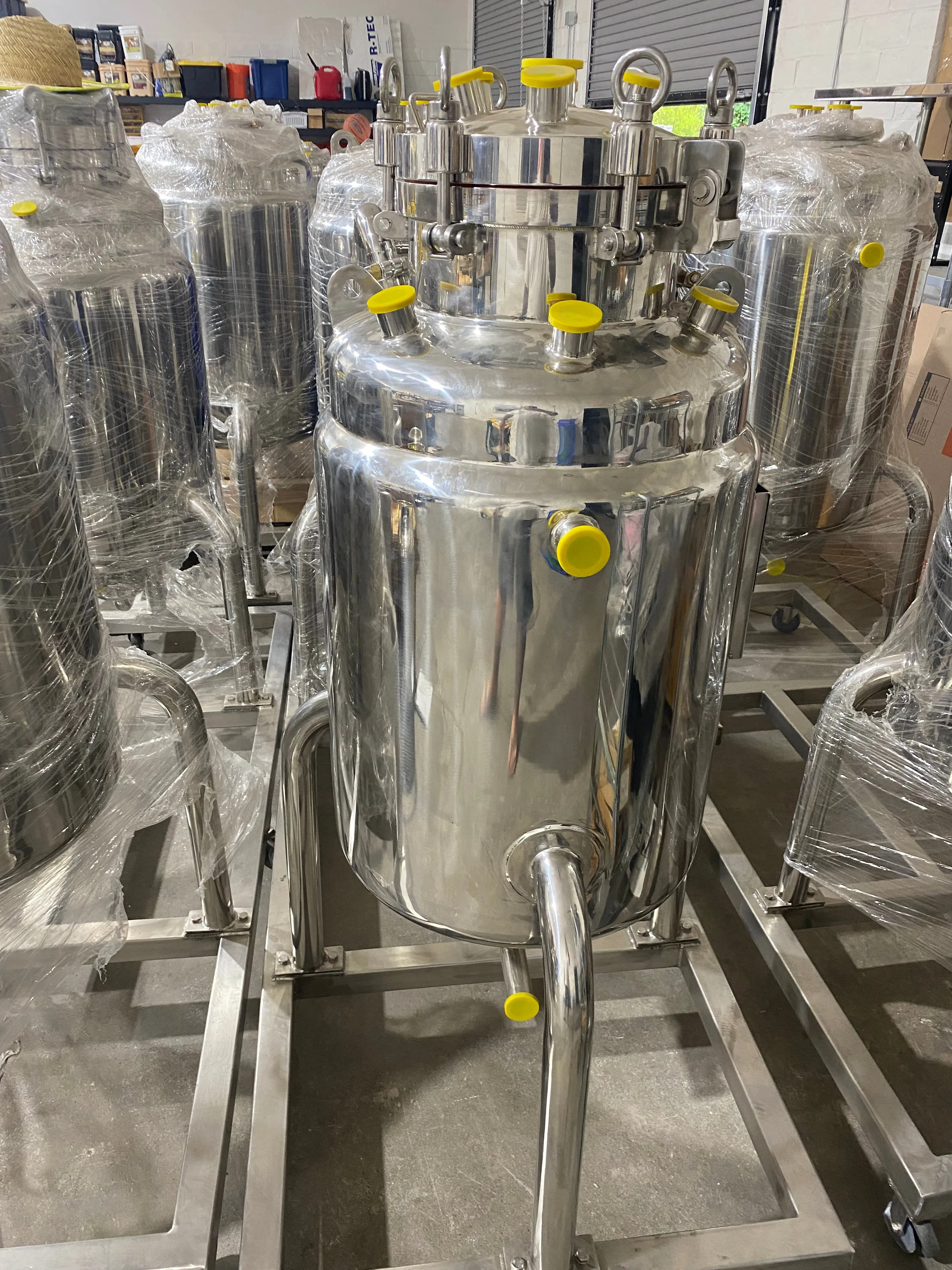

#2 jacketed vessel :

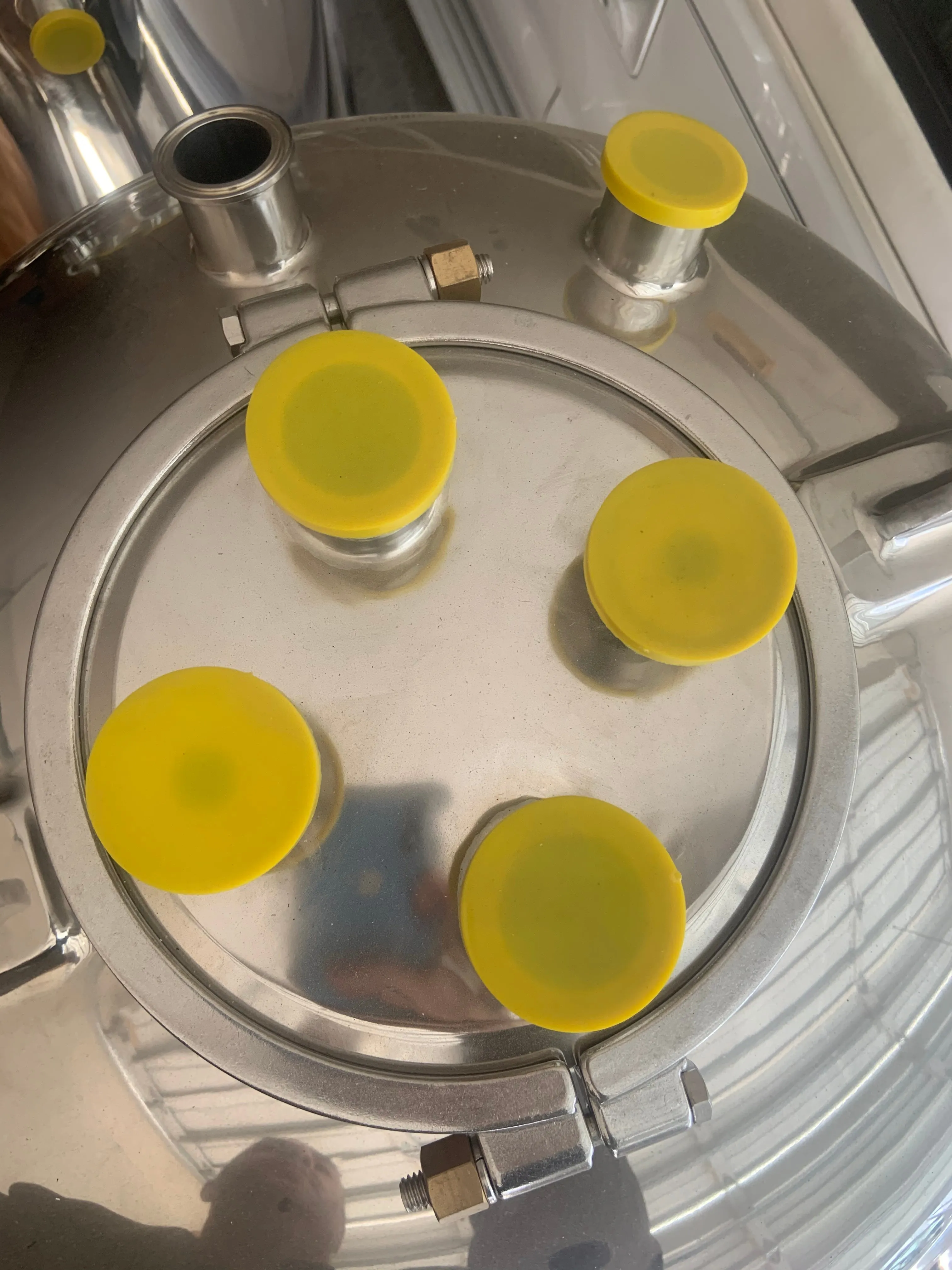

14” manway lid

2” tri clamp center

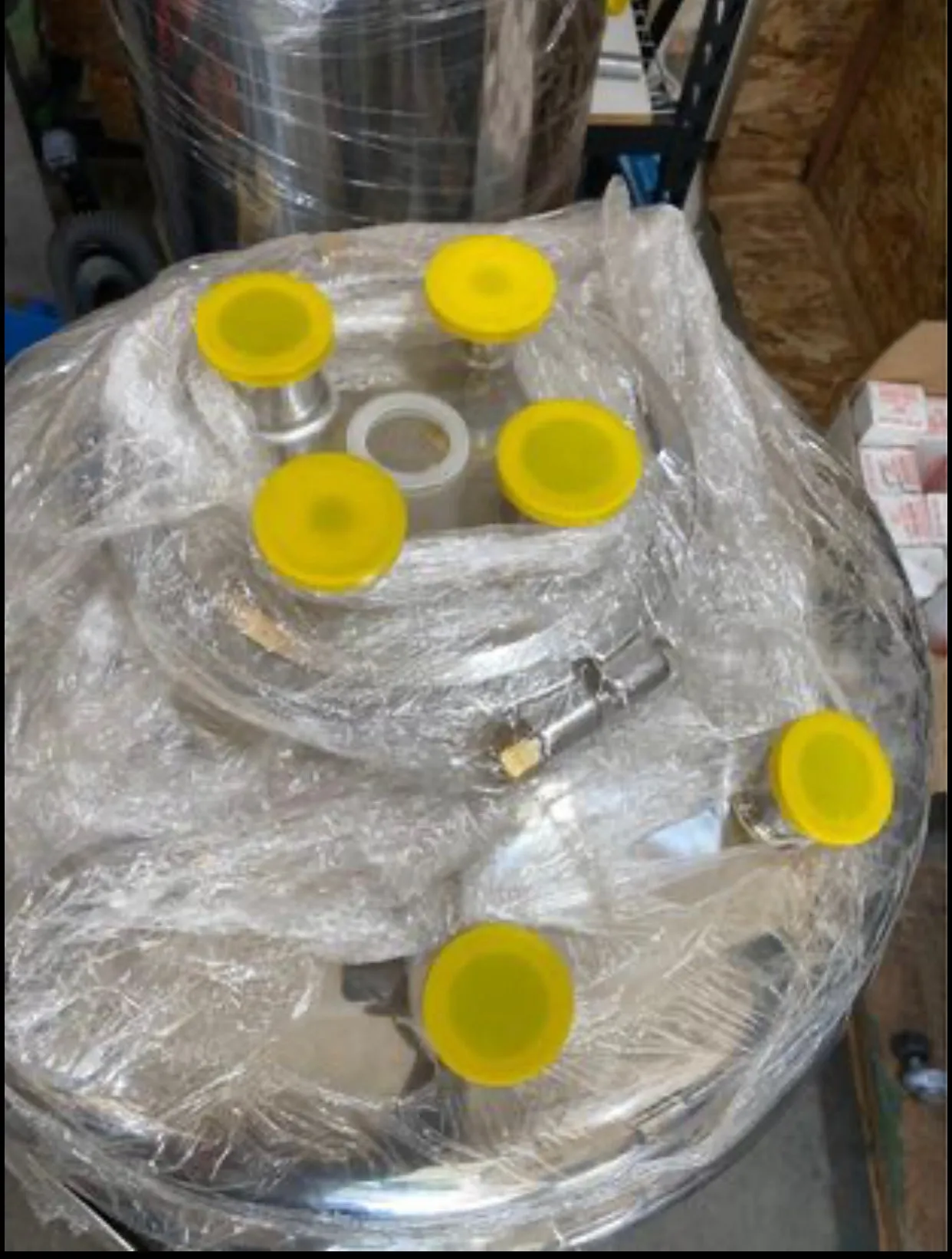

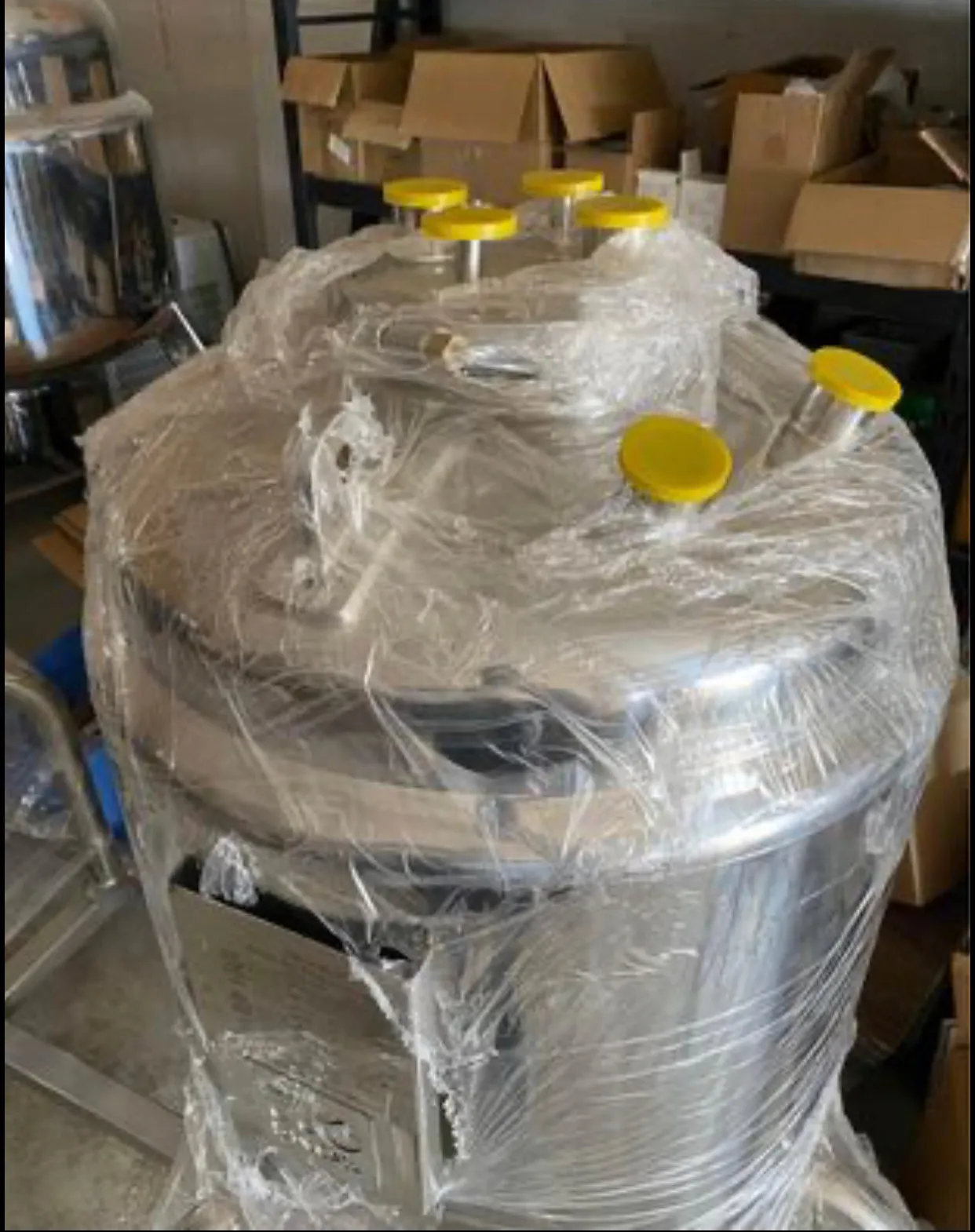

6x 1.5” tri clamp on lid

6x additional 1.5” tri clamp on top below manway

6” tri clamp bottom with 1.5” drain

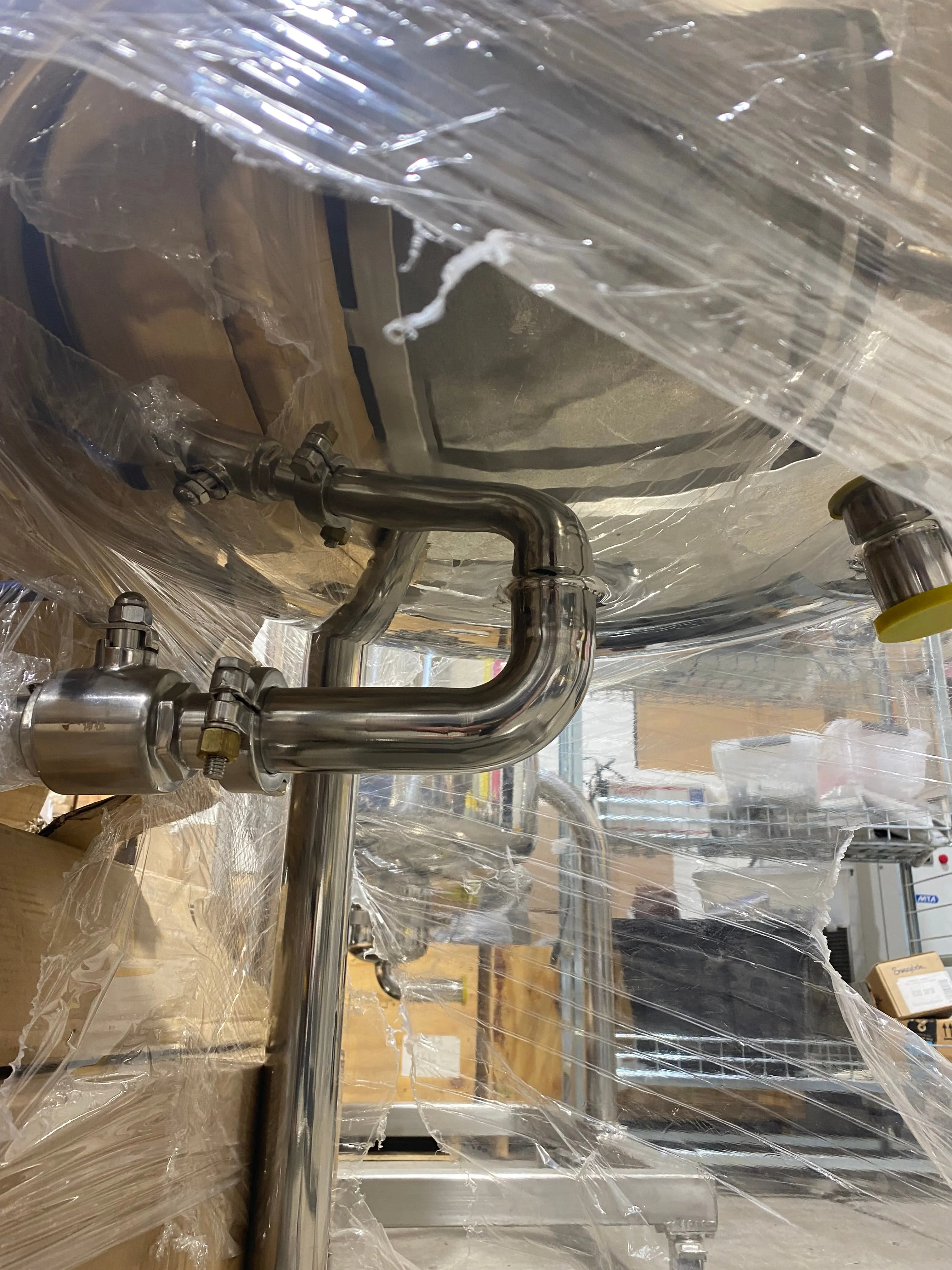

1.5” jacket inlet and outlet

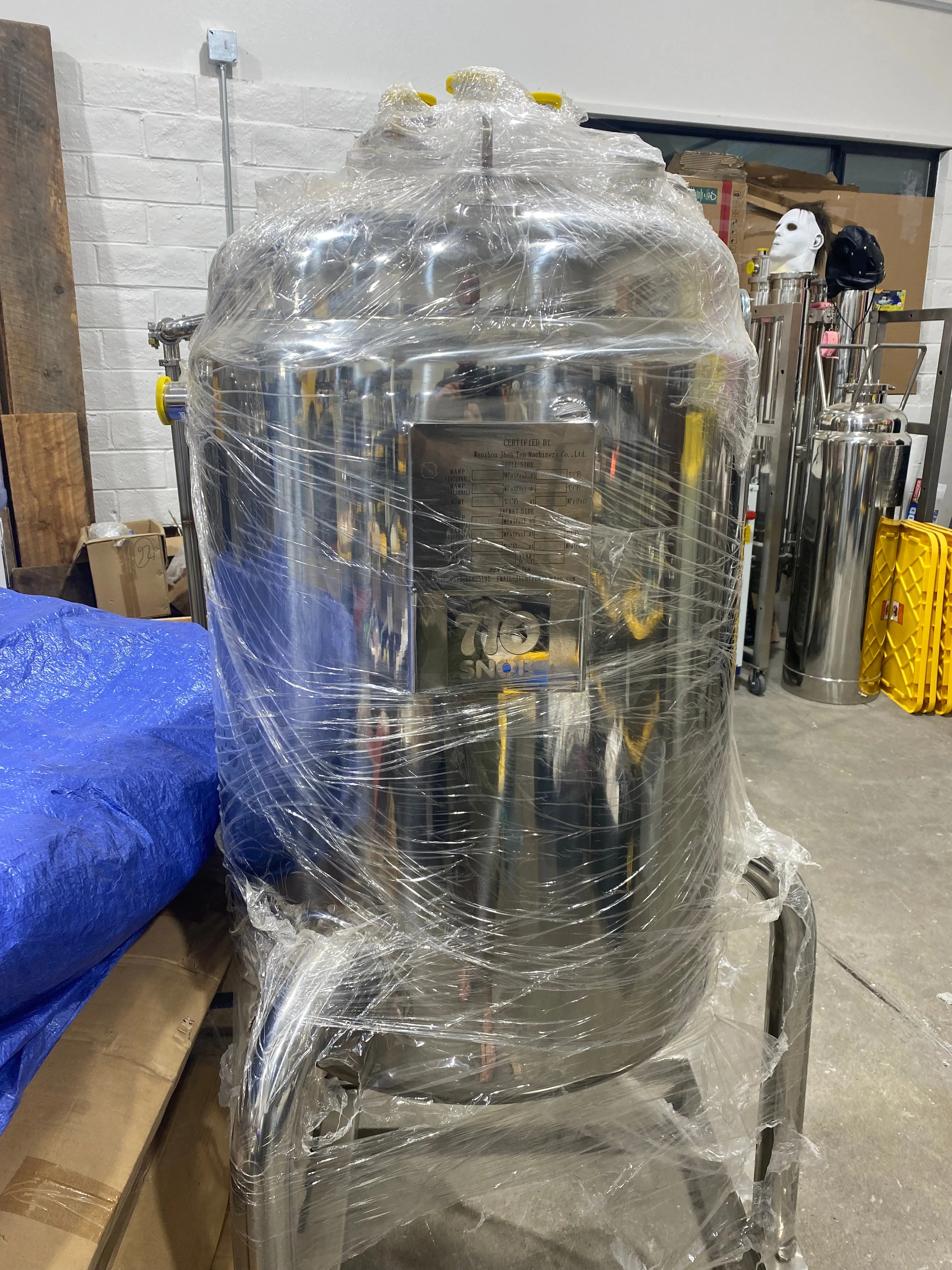

Please call for a freight quote, we have these in stock in Forestville Ca 95436 for expedited delivery across the USA.

weight is approx 1000lbs dry so freight will run $750-$900 in the cont usa

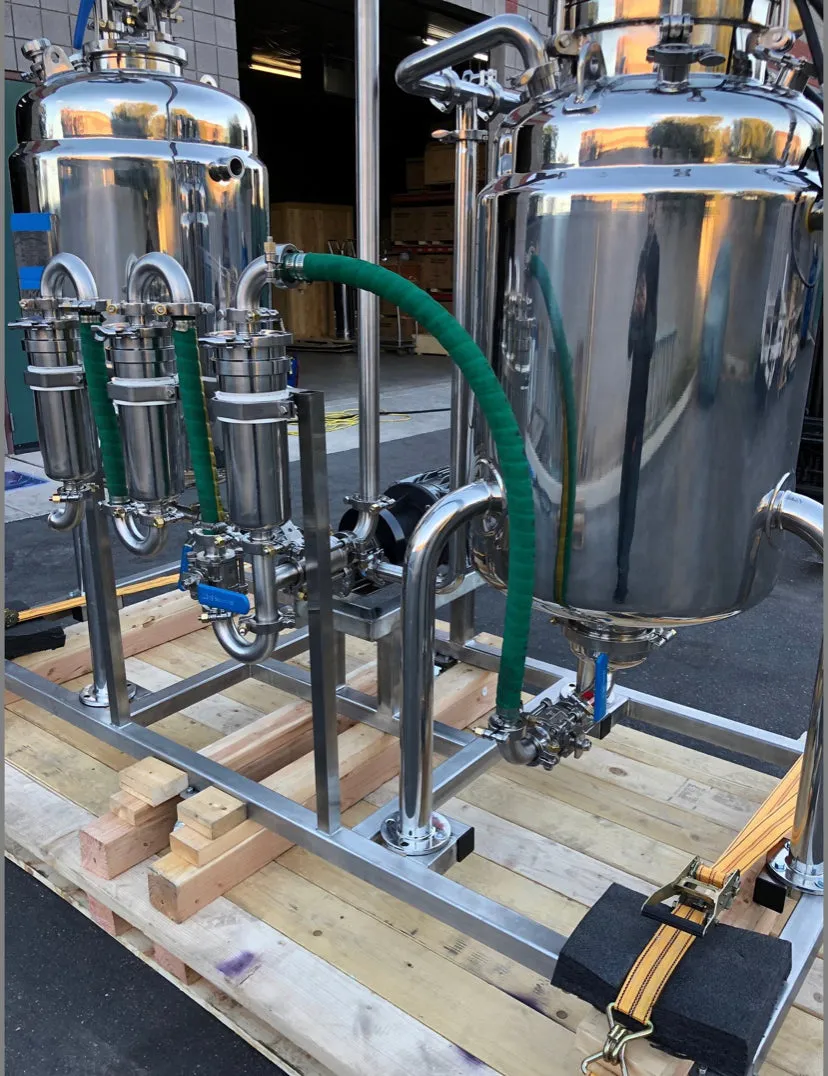

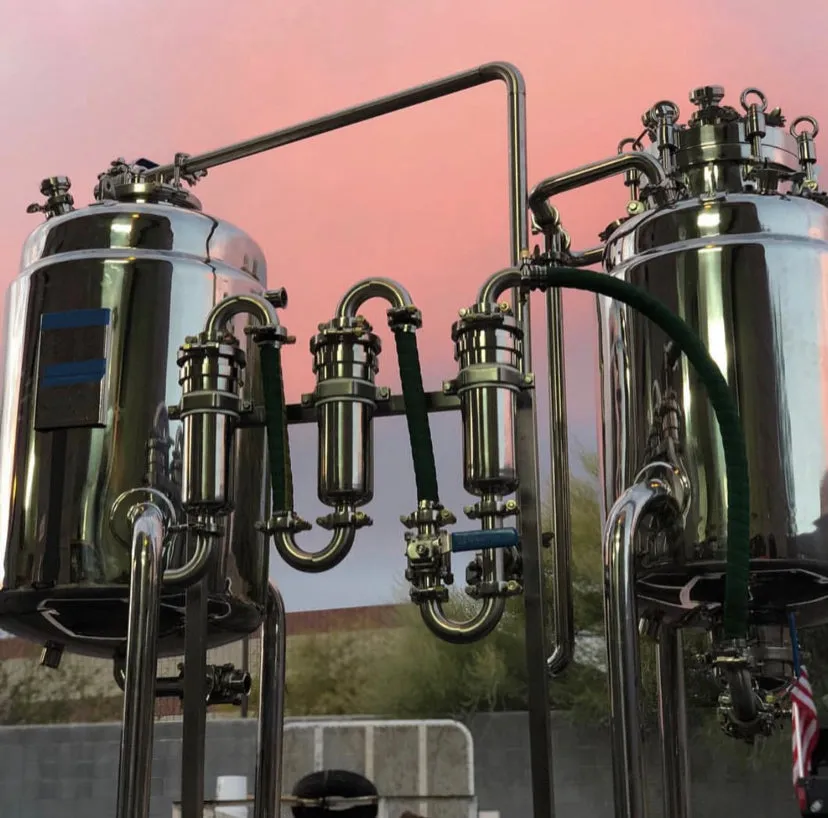

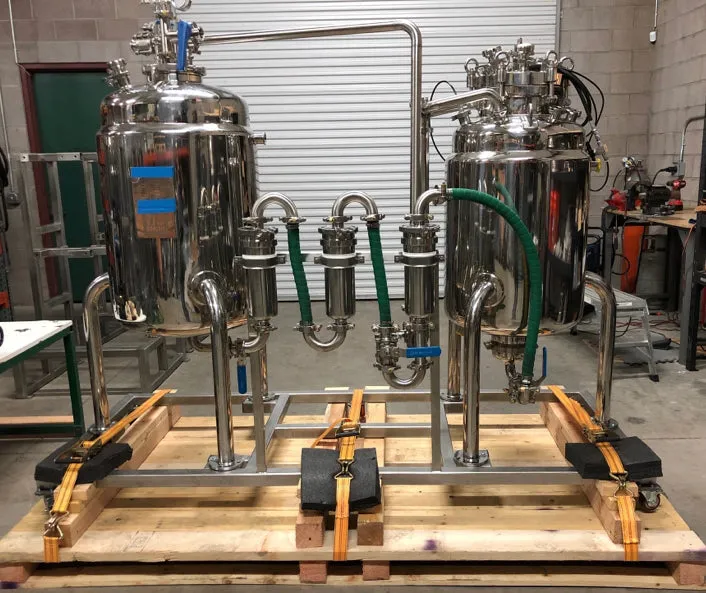

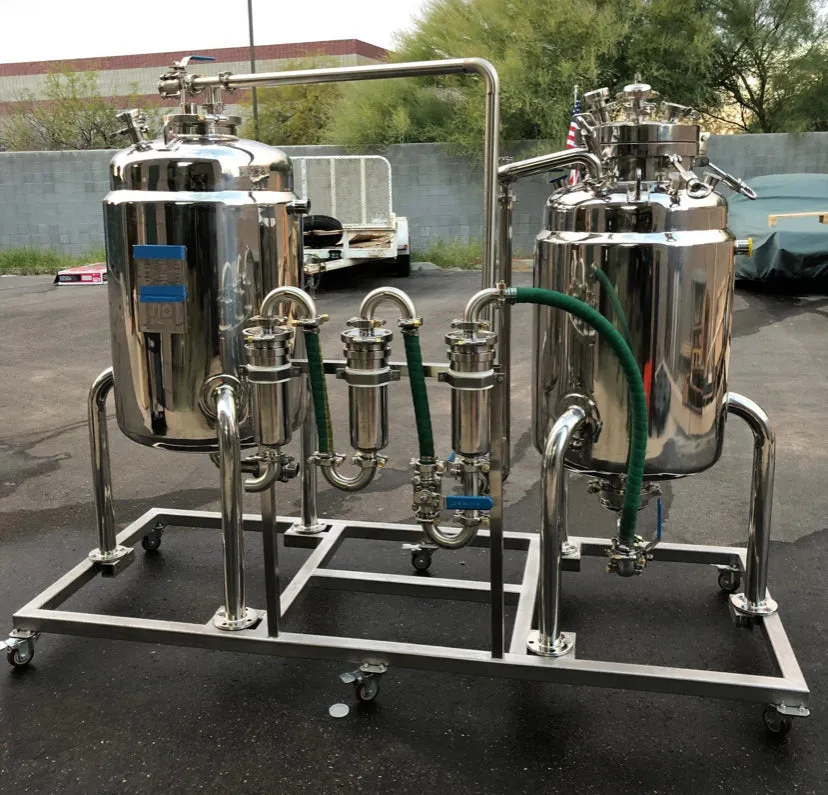

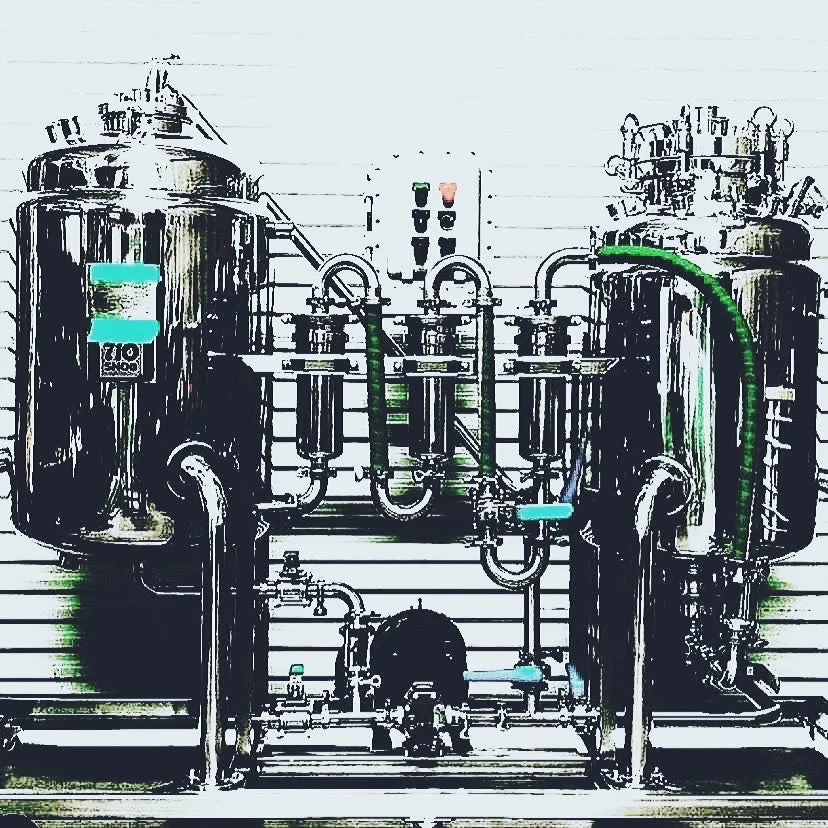

we have set these up with pumps for ethanol washing of hemp, 3 stage filtration racks, decarb, crystallization among other uses( dmt, pentane, hexane, propane, butane)

Decarboxylation Reactors

USA shipping from Forestville CA
