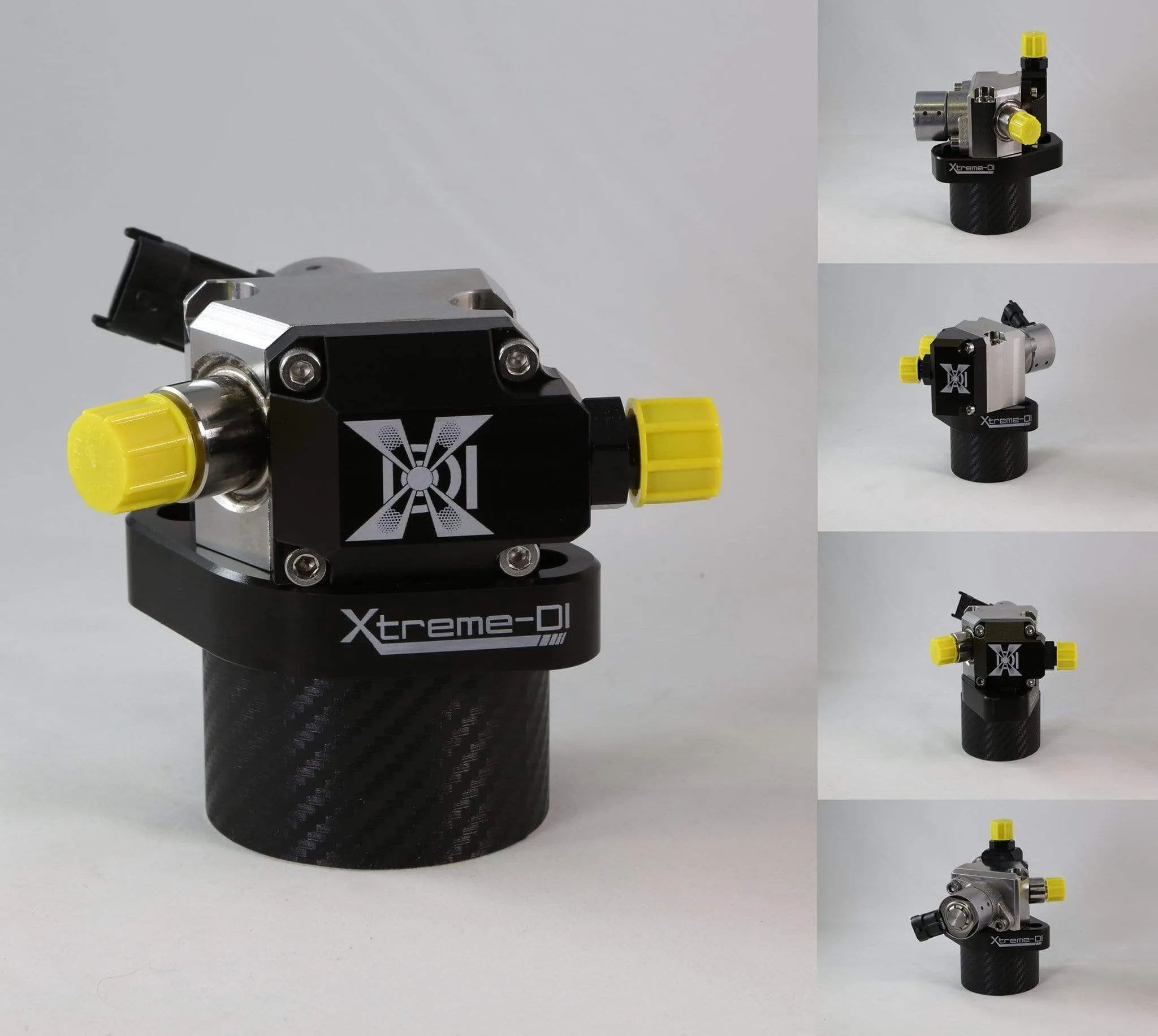

This Patent Pending GDI high pressure pump was developed to replace the Bosch OEM high pressure pump. It delivers up to 36% more fuel flow.
Maximum Fuel Pressure is 240bar / 2900psi.
The kit comes with everything you need: the HPFP, base plate, hardware, adapter fittings.

Customer-specific fittings and lines on request.

Straight E85 GDI only !!!

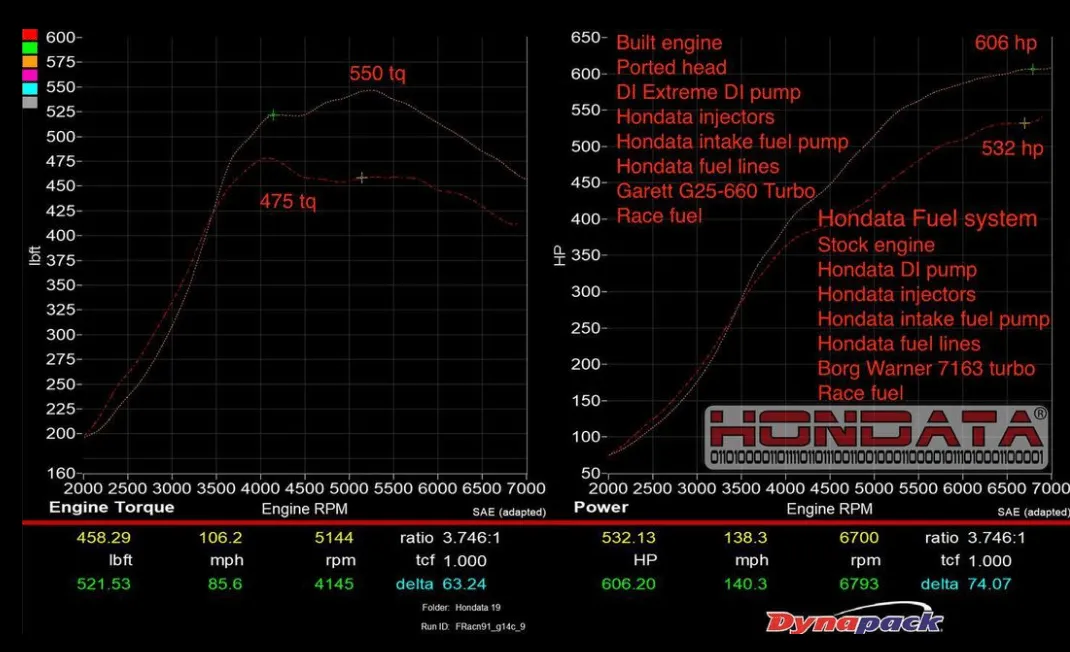

So far we made 628whp on racegas with our XDI-1650cc Injectors on Motec.
605whp on racegas with Hondata injectors on Hondata.

No meth, no PFI, no extra ECUs, no wiring, full control, full OBD Diagnostics.

Description

Maximum Rail Pressure
OEM = 200bar / 2900psi
XDI-EVO = 240bar / 3500psi ( 20%)
Fuel Compatibility: all known fuels, all Ethanol blends

Electric Connector: Bosch Compact 2-pin

Driver Profile: XDI, integrated in Hondata FlashPro

Accessories: electric pigtail, hardware


MECHANICAL DATA
Geometric Volume
OEM = 1.02cc / rev
XDI-EVO = 1.39cc / rev > 36% capacity
Maximum Flow Rate:
tbc (actual measured flow)
max. RPM = 7800

Housing material: stainless steel, hard coated Aluminum

Tuning Support: Motec, Hondata, WinOLS

Dry Weight: 1112 g
